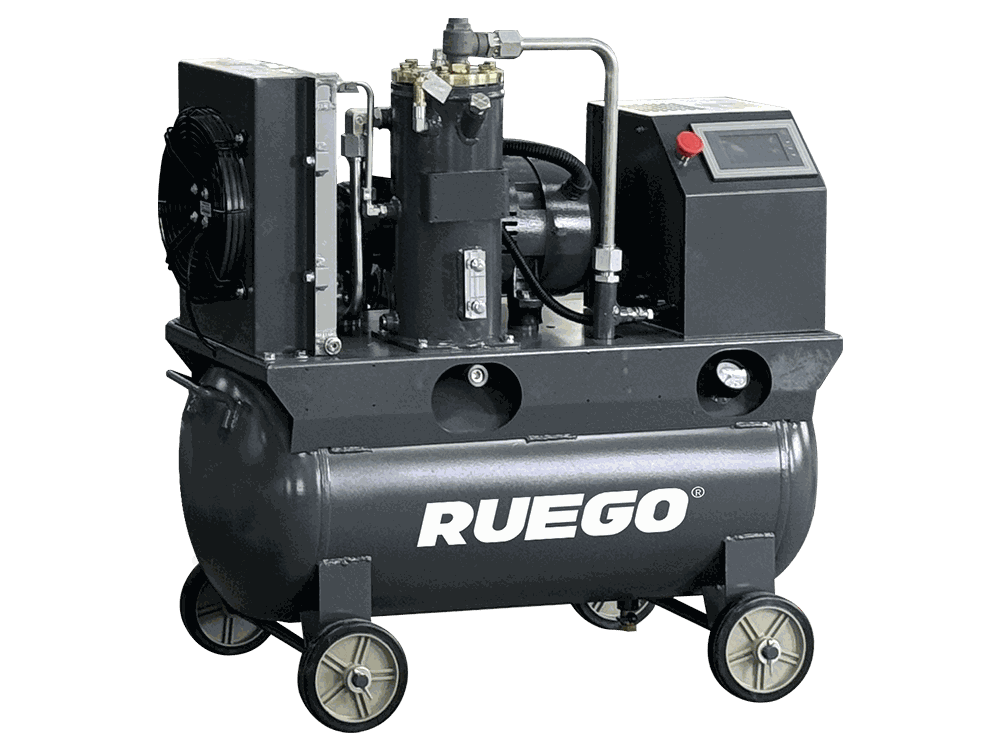

Small Rotary Screw Air Compressor
The RUEGO small rotary screw air compressor is an innovative product that perfectly integrates an air storage tank with a screw compressor, specifically designed to meet the needs of various small-scale industrial applications. Its power range spans from 2.2 HP to 10 HP, featuring easy installation, space and cost savings, and flexible adaptability.
Fixed Speed and Variable Speed Optional
Advantages Of Small Rotary Screw Air Compressor
Convenient
The compact design of the small screw air compressor maximizes ease of use, and its integrated structure combines the air tank with a powerful screw compressor, eliminating the need for complicated installation. Available with iron wheels and silent wheels for easy movement, it is ideal for flexible operation. Simple setup and low-maintenance design ensure a worry-free user experience.
High-Efficiency Motor
High performance IP23 rated copper motor ensures excellent energy efficiency and reliable operation. The motor is designed to provide stable performance, low noise and minimal vibration, thus improving durability and reducing energy consumption for long-term, cost-effective use.
More Stable
The screw air compressor offers advantages such as excellent running stability and low noise. Its compact design and efficient compression principle enable the equipment to provide continuous and stable airflow, while also having a lower failure rate, simpler maintenance, and being more suitable for long-term continuous operation compared to piston air compressors.
Cost Savings
In small-scale production scenarios, small screw air compressors have become an ideal choice due to their lower price and significant cost advantages compared with high-power air compressors. You don't have to pay for energy consumption that exceeds actual needs, helping you effectively reduce operating costs.
Product Parameters
* For higher specifications please contact our sales team.
| Model: | Small3A |
| Power: | 2.2 kW / 3 HP |
| Voltage/Frequency: | 220V/50Hz/1Ph (Customizable) |
| Driven Mode: | Permanent Magnet Synchronous |
| Starting Mode: | Direct Drive |
| Cooling Mode: | Air-Cooling |
| Air Outlet Pipe Diameter: | DN15 |
| Motor speed: | 2960 rpm |
| Gas Tank Capacity: | 90 L / 23.78 Gal or Customized |
Air Pressure & Volume flow
| Air pressure | Volume flow |
|---|---|
| 7 bar / 101.53 psi | 0.28 m³/min / 9.89 CFM |
| 10 bar / 145.04 psi | 0.27 m³/min / 9.53 CFM |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 900*450*880 mm | 102 kg |
| Model: | Small4A |
| Power: | 3 kW / 4 HP |
| Voltage/Frequency: | 220V/50Hz/1Ph (Customizable) |
| Driven Mode: | Permanent Magnet Synchronous |
| Starting Mode: | Direct Drive |
| Cooling Mode: | Air-Cooling |
| Air Outlet Pipe Diameter: | DN15 |
| Motor speed: | 2960 rpm |
| Gas Tank Capacity: | 90 L / 23.78 Gal or Customized |
Air Pressure & Volume flow
| Air pressure | Volume flow |
|---|---|
| 7 bar / 101.53 psi | 0.41 m³/min / 14.48 CFM |
| 10 bar / 145.04 psi | 0.38 m³/min / 13.42 CFM |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 900*450*880 mm | 108 kg |
| Model: | Small5.5A |
| Power: | 4 kW / 5.5 HP |
| Voltage/Frequency: | 220V/50Hz/1Ph (Customizable) |
| Driven Mode: | Permanent Magnet Synchronous |
| Starting Mode: | Direct Drive |
| Cooling Mode: | Air-Cooling |
| Air Outlet Pipe Diameter: | DN15 |
| Motor speed: | 2960 rpm |
| Gas Tank Capacity: | 90 L / 23.78 Gal or Customized |
Air Pressure & Volume flow
| Air pressure | Volume flow |
|---|---|
| 7 bar / 101.53 psi | 0.49 m³/min / 17.31 CFM |
| 10 bar / 145.04 psi | 0.46 m³/min / 16.25 CFM |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 1000*500*1050 mm | 120 kg |
| Model: | Small7.5A |
| Power: | 5.5 kW / 7.5 HP |
| Voltage/Frequency: | 220V/50Hz/1Ph (Customizable) |
| Driven Mode: | Permanent Magnet Synchronous |
| Starting Mode: | Direct Drive |
| Cooling Mode: | Air-Cooling |
| Air Outlet Pipe Diameter: | DN15 |
| Motor speed: | 2960 rpm |
| Gas Tank Capacity: | 120 L / 31.7 Gal or Customized |
Air Pressure & Volume flow
| Air pressure | Volume flow |
|---|---|
| 7 bar / 101.53 psi | 0.90 m³/min / 31.78 CFM |
| 10 bar / 145.04 psi | 0.88 m³/min / 31.14 CFM |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 900*450*880 mm | 125 kg |
| Model: | Small10A |
| Power: | 7.5 kW / 10 HP |
| Voltage/Frequency: | 220V/50Hz/1Ph (Customizable) |
| Driven Mode: | Permanent Magnet Synchronous |
| Starting Mode: | Direct Drive |
| Cooling Mode: | Air-Cooling |
| Air Outlet Pipe Diameter: | DN15 |
| Motor speed: | 2960 rpm |
| Gas Tank Capacity: | 120 L / 31.7 Gal or Customized |
Air Pressure & Volume flow
| Air pressure | Volume flow |
|---|---|
| 7 bar / 101.53 psi | 1.07 m³/min / 37.80 CFM |
| 10 bar / 145.04 psi | 1.02 m³/min / 36.03 CFM |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 900*450*880 mm | 127 kg |
| Model: | Small4HP |
| Power: | 3 kW / 4 HP |
| Voltage/Frequency: | 220V/50 and 60Hz/1Ph (Customizable) |
| Driven Mode: | Permanent Magnet Synchronous |
| Starting Mode: | Frequency conversion start |
| Cooling Mode: | Air-Cooling |
| Air Outlet Pipe Diameter: | DN15 |
| Motor speed: | 1500-3600 rpm |
| Gas Tank Capacity: | 90 L / 23.78 Gal or Customized |
Air Pressure & Volume flow
| Air pressure | Volume flow |
|---|---|
| 7 bar / 101.53 psi | 0.56 m³/min / 19.78 CFM |
| 10 bar / 145.04 psi | 0.48 m³/min / 16.96 CFM |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 900*450*880 mm | 110 kg |
| Model: | Small5.5HP |
| Power: | 4 kW / 5.5 HP |
| Voltage/Frequency: | 220V/50 and 60Hz/1Ph (Customizable) |
| Driven Mode: | Permanent Magnet Synchronous |
| Starting Mode: | Frequency conversion start |
| Cooling Mode: | Air-Cooling |
| Air Outlet Pipe Diameter: | DN15 |
| Motor speed: | 1500-3600 rpm |
| Gas Tank Capacity: | 90 L / 23.78 Gal or Customized |
Air Pressure & Volume flow
| Air pressure | Volume flow |
|---|---|
| 7 bar / 101.53 psi | 0.63 m³/min / 22.26 CFM |
| 10 bar / 145.04 psi | 0.50 m³/min / 17.66 CFM |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 1000*500*1050 mm | 125 kg |
| Model: | Small7.5HP |
| Power: | 5.5 kW / 7.5 HP |
| Voltage/Frequency: | 220V/50 and 60Hz/1Ph (Customizable) |
| Driven Mode: | Permanent Magnet Synchronous |
| Starting Mode: | Frequency conversion start |
| Cooling Mode: | Air-Cooling |
| Air Outlet Pipe Diameter: | DN15 |
| Motor speed: | 1500-3600 rpm |
| Gas Tank Capacity: | 120 L / 31.7 Gal or Customized |
Air Pressure & Volume flow
| Air pressure | Volume flow |
|---|---|
| 7 bar / 101.53 psi | 1.07 m³/min / 37.81 CFM |
| 10 bar / 145.04 psi | 0.92 m³/min / 32.47 CFM |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 1000*500*1050 mm | 128 kg |
| Model: | Small10HP |
| Power: | 7.5 kW / 10 HP |
| Voltage/Frequency: | 220V/50 and 60Hz/1Ph (Customizable) |
| Driven Mode: | Permanent Magnet Synchronous |
| Starting Mode: | Frequency conversion start |
| Cooling Mode: | Air-Cooling |
| Air Outlet Pipe Diameter: | DN15 |
| Motor speed: | 1500-3600 rpm |
| Gas Tank Capacity: | 120 L / 31.7 Gal or Customized |
Air Pressure & Volume flow
| Air pressure | Volume flow |
|---|---|
| 7 bar / 101.53 psi | 1.31 m³/min / 46.29 CFM |
| 10 bar / 145.04 psi | 1.02 m³/min / 35.98 CFM |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 1000*500*1050 mm | 130 kg |
RUEGO small rotary screw compressors are ideal for small-scale production needs
Car repair
A stable and efficient compressed air system is essential for the automotive repair industry. RUEGO small rotary screw air compressors, with their excellent performance, can provide lasting power for the pneumatic tools in the workshop. Whether it is changing tires, using pneumatic wrenches, or painting, it can ensure smooth and efficient work.
Woodworker
Provide a continuous flow of air for pneumatic milling machines, pneumatic saws, pneumatic nail guns and other equipment to ensure the accuracy and efficiency of cutting, carving and nailing operations. Achieve high-precision wood cutting and carving, and avoid processing errors caused by air pressure fluctuations; while pneumatic nail guns require sufficient airflow to push the nail needle through the wood to achieve fast and stable nailing.
Packaging production
Provides stable airflow for pneumatic marking equipment, pneumatic capping machines and pneumatic packaging machinery, ensuring efficient execution of label printing, sealing and packaging operations. Compared with traditional piston air compressors, screw compressors are quieter and more suitable for long-term continuous operation.
Metalworking
Pneumatic milling machines require a stable and powerful airflow to ensure that every cut is accurate and correct, especially when dealing with hard metals or complex shapes, requiring a continuous and non-fluctuating air supply. Pneumatic cutting machines have extremely high requirements for airflow pressure. Only stable air pressure can ensure the speed and quality of the cutting process and avoid uneven cutting or breakage.
